07.09.2023

We offer a Zalman PCs’ power supplies range, which has an optimal ratio of quality, functional features and cost.

The South Korean Zalman company offers a wide range of components for creating or improving advanced computer systems. Universal range, unique technological solutions, many years of experience and worldwide recognition of Zalman are important components of success.

Cases, power supply units, air and liquid cooling systems, various accessories are the main products of Zalman, which are popular and known to a wide range of users, connoisseurs of modern computer components.

It is very interesting to assemble your own PC at the moment. The advantage is that it is possible to choose and combine components at your discretion, create and implement case’s modding design, stylize it to match the interior or your favorite game. The power supply unit is an important component of the system, which depends on the coordinated operation of all components.

What should you pay attention to first of all when choosing a power supply unit for a PC:

on the power of the power supply unit considering all the components of the system as a whole. It is advisable to choose a power supply unit with a power reserve for a prospective system upgrade, but within certain limits;
on the system’s operating conditions and the load, whether the system is designed for overclocking or will work in normal mode;
on the availability of cables and their completion with connectors, which are necessary for connecting components. They can have a variety of coatings, fixed in the power supply unit case, or modular. It is also worth paying attention to the cables’ length. This is important for further convenient connection of components and their rational placement in the case;
on the main parameters of the power supply unit specification – the presence of APFC, efficiency index and 80+ certification according to internationally recognized standards, technical features of the component base. The above-mentioned characteristics significantly affect the cost of the power supply unit, but a certified power supply unit is a guaranteed set of all necessary types of protection and reliable operation of the device during the specified operation period;
on the power supply unit’s size and the standard, the possibility of placing it in the selected case. Some cases have limitations on the power supply unit’s length, and power supply units may not be of standard size.

Zalman TERAMAX

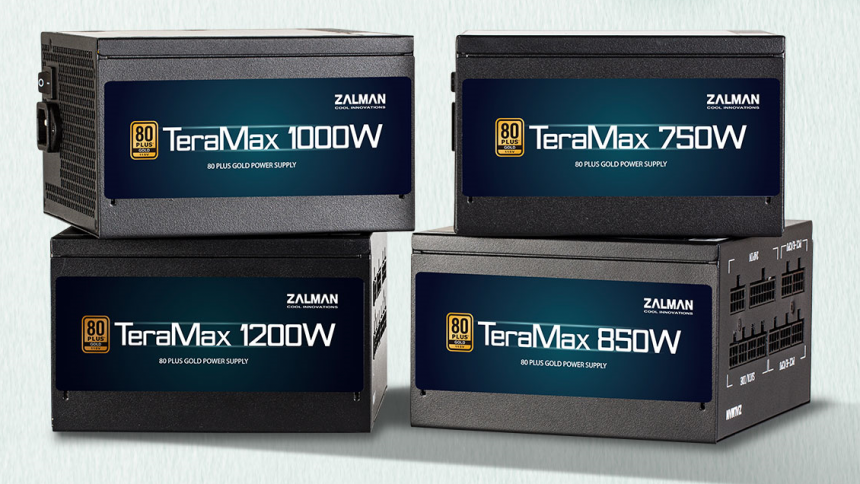

We suggest you consider Zalman’s offer as an example of a universal power supply for a modern PC that will perform tasks of medium and high complexity levels and in the perspective of an upgrade. TERAMAX is a new series in the Zalman PSU range. All units of the series are modular and certified according to the 80 Plus Gold international system.

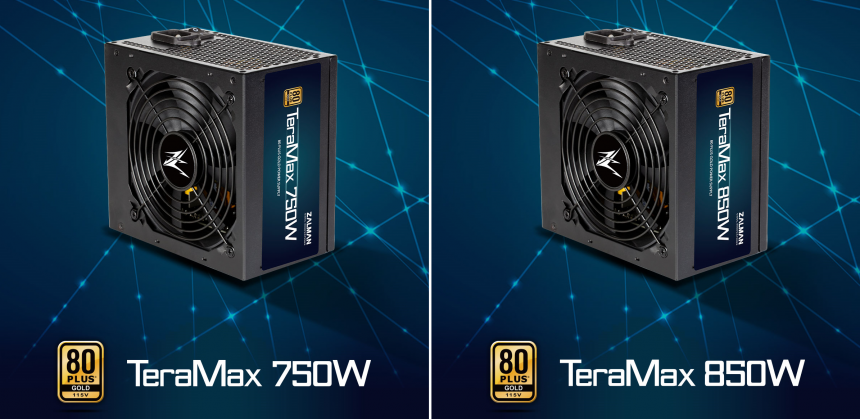

Zalman TERAMAX 750W and 850W modular power supplies for modern premium computer systems. The TERAMAX series is designed to save energy and ensure uninterrupted operation for 7 years. The component base of power supply units is reliable and durable. Certification and compliance with the 80 PLUS GOLD standard is an additional advantage of the device. A power supply unit with a 120 mm FDB fan that works quietly, regardless of load, and guarantees effective blowing of components.

Zalman TERAMAX power supplies with a capacity of 750W and 850W as an example of the optimal ratio of device’s cost and quality:

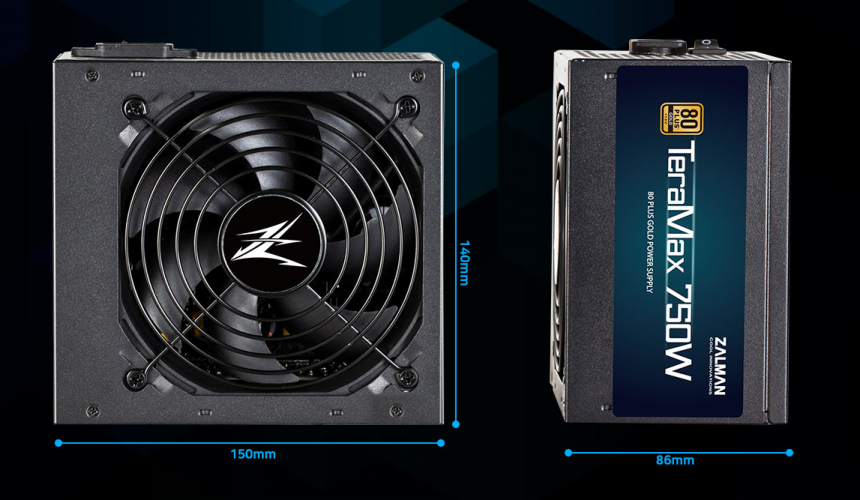

ATX format, power supply unit sizes – 180 × 150 × 86 mm;

component base with 12V DC-DC converter: supports a wide range of PC components, minimizes output voltage fluctuations and provides 12 V DC as standard for stable system operation;

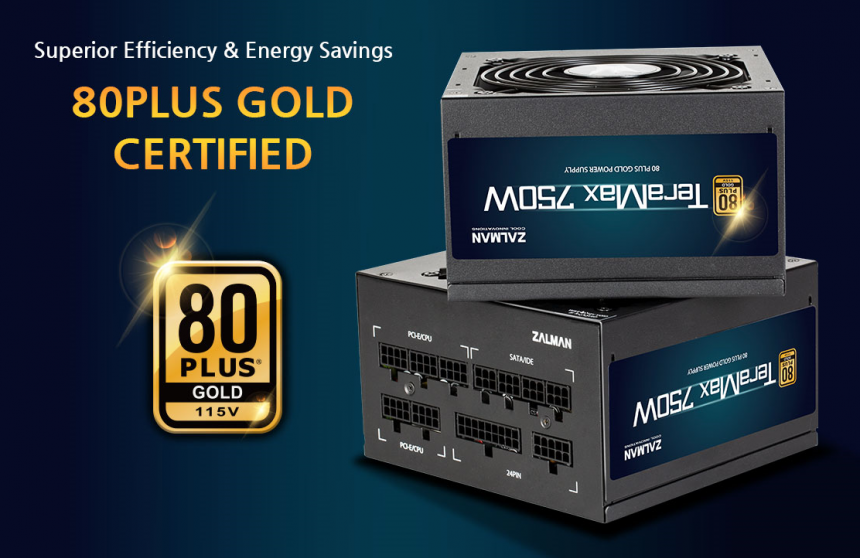

the availability of 80 PLUS GOLD certification guarantees an efficiency of 89-94%% at a load of 20%, 50% and 100%, that significantly reduces the system’ energy consumption. High efficiency during operation of power supply units reduces current loss, overheating, as well as indicators of high-frequency noise and fan noise level;

high-quality Japanese solid-state capacitors, resistant to high temperatures (up to 105°C) and excessive loads;

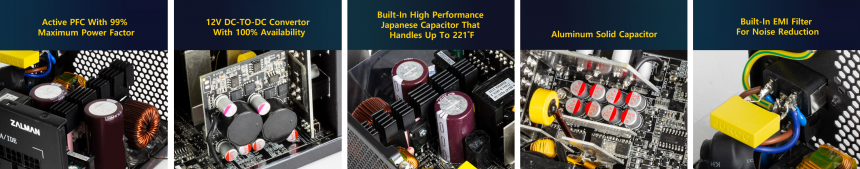

availability of APFC – an active reactive power compensation method with a maximum efficiency factor of up to 99.5% for uninterrupted operation and stable load of power supplies with high energy efficiency. This is a safe operation of the system with a low noise level and heat generation, minimal fluctuations in the power supply. The use of an active reactive power compensation method contributes to the growth of energy efficiency with a decrease in the electromagnetic field, that prevents the reverse current formation;

the modern component base of power supply units consists of reliable and high-performance components: among them, a pulse converter that provides a stable voltage without the input current overloading;

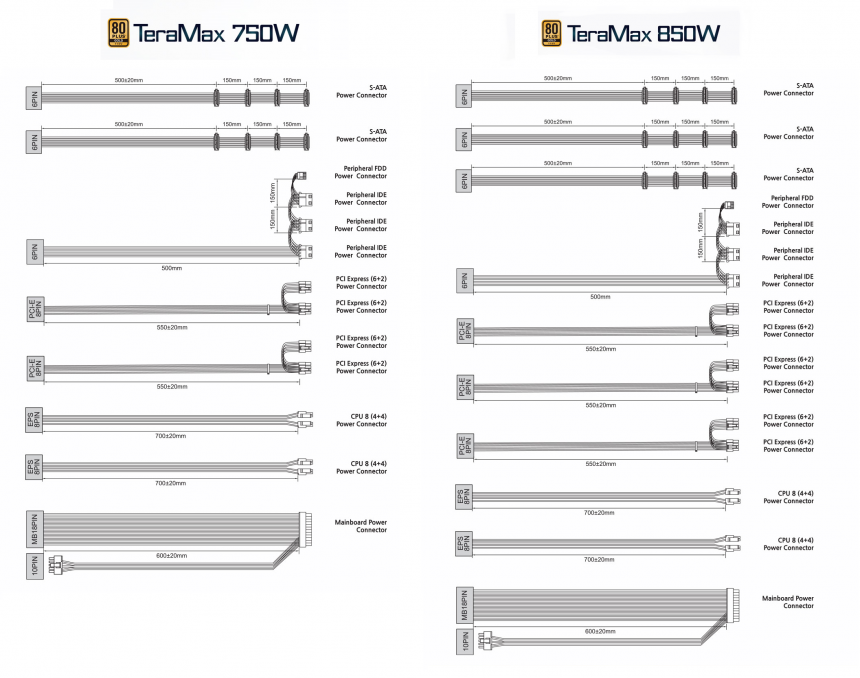

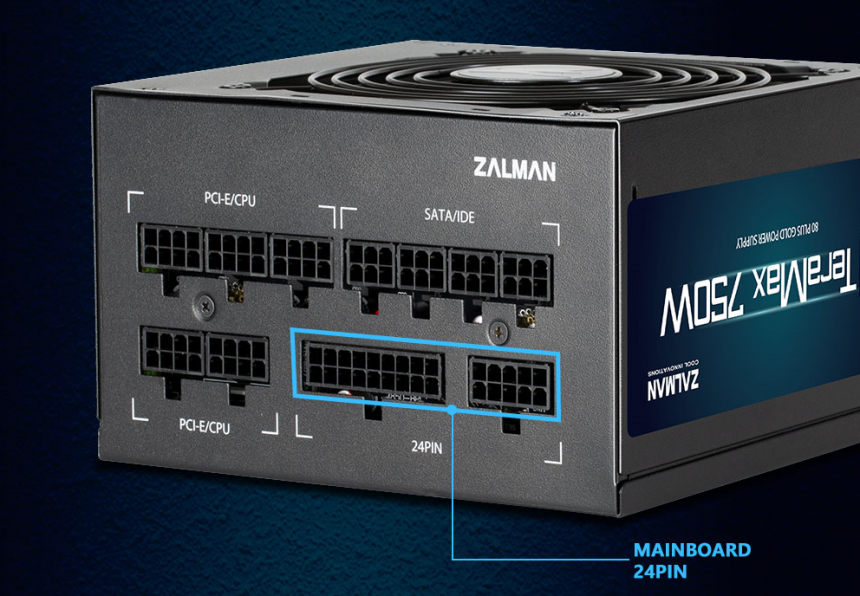

a sufficient number of implemented interfaces, which are conveniently located on cables with an actual length for connecting the modern PC system components;

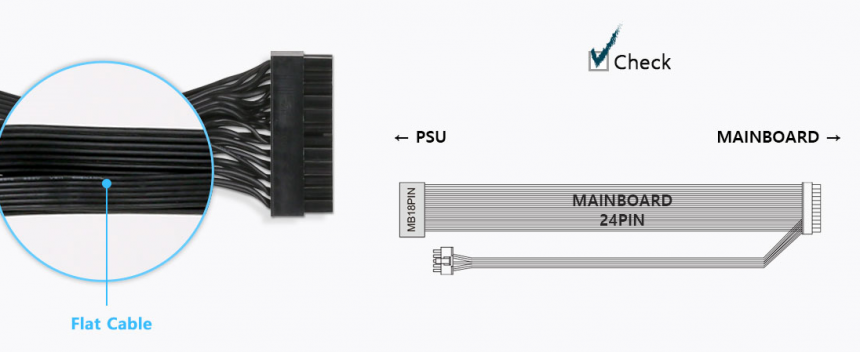

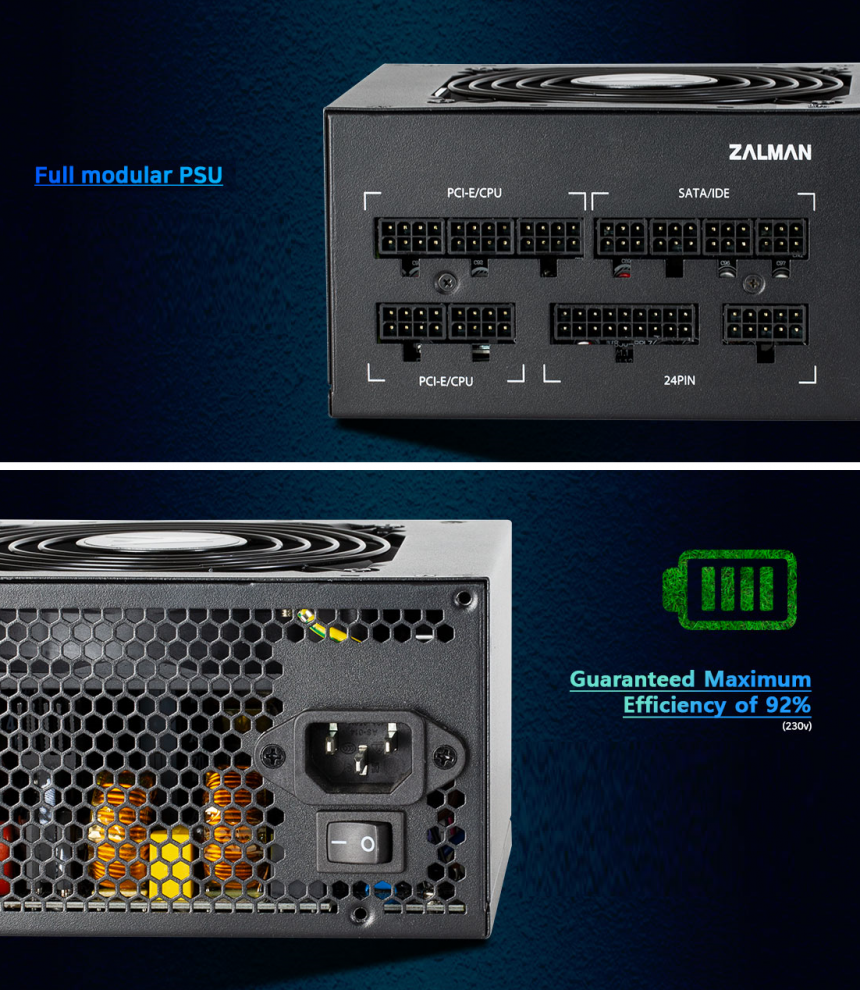

modular cables in the form of flat flexible loops in black have the optimal length for connecting all the necessary components and compact placement in the case;

powerful single + 12V bus. Such a circuitry feature is ideal for future component upgrades or overclocking load, guarantees a stable power supply voltage for the processor and video adapter;
a special electromagnetic errors filter, which helps to optimize the system operation;
active cooling element – 120mm silent FDB fan;

the passive part of the cooling system is carried out using a built-in two-section aluminum radiator located in the low-voltage and high-voltage parts of the case. It is these components of the component base that will ensure the removal of excessive heat from the power supplies’ components;

international certification of the electromagnetic interference level and safety, which is carried out according to standard rules and meets the requirements of KC and IEC and has a standard list of necessary protections for this category of devices that contribute to stable and uninterrupted work during operation: overvoltage protection (OVP), undervoltage protection (UVP), short circuit protection (SCP), over power protection (OPP), over temperature protection (OTP), over current protection (OCP).

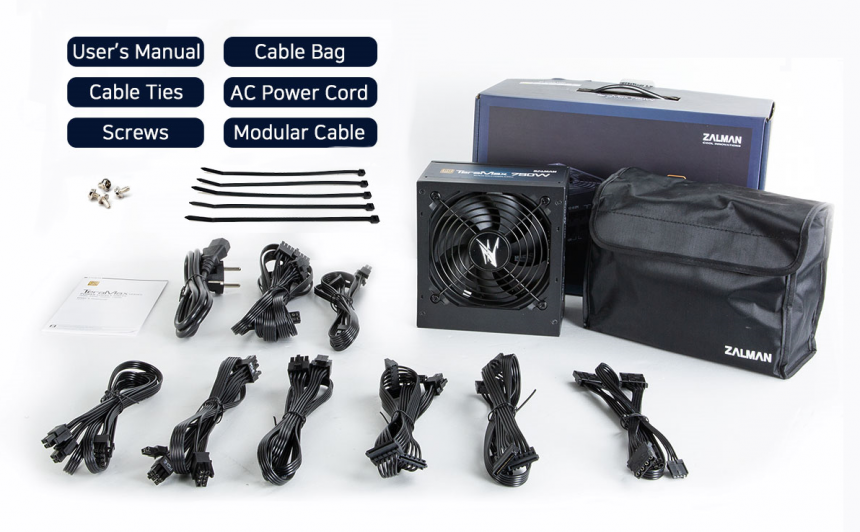

the power supply units set includes all the necessary components and information regarding operating conditions, namely:
- power cable;
- screws for fastening the power supply unit in the computer case;
- screeds for organizing and neatly placing cables in the case;
- detailed user manual.

Compliance of PSUs to the RoHS Standard

Certified products are ecologically safe for the environment and the user. Power supplies are certified only after special XRF testing: the content level of 10 hazardous substances must be lower than the level set by the standard for exported electronics. All Zalman’s products are RoHS compliant.

Zalman TERAMAX ZM750-TMX and ZM850-TMX power supply units are with a modern component base, that guarantees reliable and stable operation during a long service life and allows you to be sure of the unit’s perfect performance and high-quality system power supply. The kit includes everything necessary for the device operation.

Many years of experience, conscientious work of leading South Korean engineers and worldwide recognition of excellent product quality are the present of Zalman. The future with Zalman is a modern updated range and progressive ideas for business development.
